OVERVIEW
The latest addition to our range of IP-enabled remote site control products, the AUDEMAT CONTROL is a feature-packed platform offering a large number of input and output connections in a 1RU enclosure. It provides 64 digital inputs, 64 digital outputs, 24 analog inputs, 4 serial ports, 2 Ethernet ports, 4 USB ports, 1 audio output, 1 audio input and 1 modem. The voice modem offers DTMF capabilities for traditional remote notification and control.
The AUDEMAT CONTROL enables SNMP monitoring of multiple devices and provides the ability to listen to audio remotely. For peace of mind, it offers an audio back-up solution to keep you on air in difficult situations.
POWERFUL
PERFORMANCE
- Monitoring and alarm control of equipment installed at remote sites
- Very high I/O density
- Powered by ScriptEasy, the smartest graphical tool in the market
- Completely autonomous on-site, it can handle all cases of out-of tolerance conditions
POWERFUL
CONTROL
- Complete set of tools and functions to build simple or complex scripts
- Flexible alarm and notification rules via Email, SNMP and optionally SMS and Voice/DTMF Phone Alert calls
- User friendly and customizable web dashboard using MasterView
- Fully compatible with Audemat’s Broadcast Manager as well as any SNMP Manager
POWERFUL
SAVINGS
- 24/7 data tracking and access
- Reduced downtime and fewer engineering visits
- Detection of degradation and interruption of service for protection of network investment
- Audio backup for transmitter sites prevents off-air and helps mask unexpected issues
- Scalable solution for all sites, from small to large configurations
FEATURES
- Monitoring of up to 10 SNMP devices – more on request
- Large number of GPIOs to meet the demands of the site
- Supplied with GPIO panels for 32 digital inputs/32 contact closure/24 analog inputs as standard
- Remote communication through LAN/WAN, 3G, GSM, CDMA, PSTN…
- HTTP or HTTPS secured access for views and commands
- User rights management allowing access in admin, guest or maintenance mode
- Fast Digital Output restore: less than 1s
- Dedicated DOM for system operation
- Maintenance mode to avoid alarms during technician operations
- Extractible SSD and modem for easy maintenance
- ScriptEasy software for configuration and remote administration
- MasterView (web pages or application) for end-user views of data and control
- VGA output display for local status visualization
- Notifications via Email, SMS, SNMP and Voice/DTMF Phone Alert calls
ADVANCED TELEMETRY & REMOTE CONTROL WITH SCRIPTEASY
ScriptEasy is the revolutionary facility control software developed by WorldCast Systems to give users the power and flexibility to create “Smart” sites; ones that can automatically take action to correct any critical errors that affect operations.
Featuring an intuitive Graphic User Interface (GUI), ScriptEasy incorporates GPIO functions, serial communications, logic operators, live user inputs, timers and more. This allows the site operations to be “scripted”, to allow evaluation of multiple parameters and even automatically engage backup systems, while simultaneously alerting relevant technical personnel.
CONNECT WITH WORLDCAST MANAGER
The WorldCast MANAGER simplifies the management of all SNMP-enabled devices in a network, providing real-time status and visualization of multiple devices from a single screen. The intuitive and simple-to-use interface shows all devices located at your site(s) displaying product information, alerting you to any alarms and providing one-click access to the unit’s web-based control interface.
Free to download, the WorldCast MANAGER is compatible with all WorldCast Systems’ equipment as well as SNMP devices from ANY manufacturer.
APPLICATIONS
Remote Equipment Control:
- Remotely configure Transmitters, Feeds, Satellites, any related equipment…
- Monitor equipment remotely (measurements, status)
- Program alarms to activate at certain value thresholds
- Program automatic actions based on scripts
- Single or multi site management
Technical Site Management:
- Manage incoming and outgoing feeds
- Monitor electrical consumption and protection
- Perform operational and maintenance services
- Security
Preventive Maintenance:
- Any variation alerts operator before the equipment fails
SPECIFICATIONS

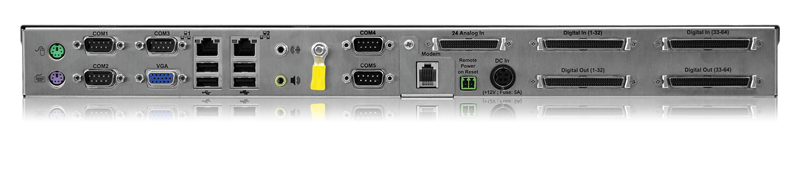

AUDEMAT CONTROL – Rear panel
AUDEMAT I/O TERMINATION PANELS
Connect to real-world signals with simple screw terminal connectors.
AUDEMAT STATUS PANEL (32 inputs)
AUDEMAT ANALOG PANEL (24 inputs)
AUDEMAT RELAYPANEL (32 inputs)
AUDEMAT IO PANEL (32/32/24)
| Physical Specification | |||
|---|---|---|---|
| Power Supply | 12 VDC – external 100-240 VAC adapter supplied | ||
| Power consumption | Max: 25 W | ||
| Power button | 1 | ||
| Maintenance button | 1 | ||
| LED indicators | 4 – ON, Drive activity, Warning, Maintenance mode | ||
| LAN ports | 2 – 10/100/1000M Base-T RJ45 ports | ||
| USB ports | 4 – USB 2.0 | ||
| Serial port | 5 – RS232, DB9 – RS485 adapters as option | ||
| VGA port | 1 – For Local screen | ||
| Keyboard/Mouse ports | PS2 – for local use | ||
| Audio input | Stereo, 3.5mm (1/8”) jack | ||
| Audio output | Stereo, 3.5mm (1/8”) jack | ||
| Digital inputs | 68-pin SCSI connectors for 64 inputs OPTO non-polarized inputs 5 – 25 V | ||
| Digital outputs | 68-pin SCSI connectors for 64 outputs Open Collector Outputs max 30V@250m=A | ||
| Analog Inputs | 50-pin SCSI connector with 24 A/D inputs Range +/– 10 V | ||
| Phone port | 1 – RJ11 for voice/data modem | ||
| Remote Reset | 1 – removable screw terminal | ||
| Ground | 1 – ground connector | ||
| TCP-IP protocol | TCP, UDP, HTTP, FTP, SNMP, NTP, PPP… | ||
ALSO AVAILABLE:

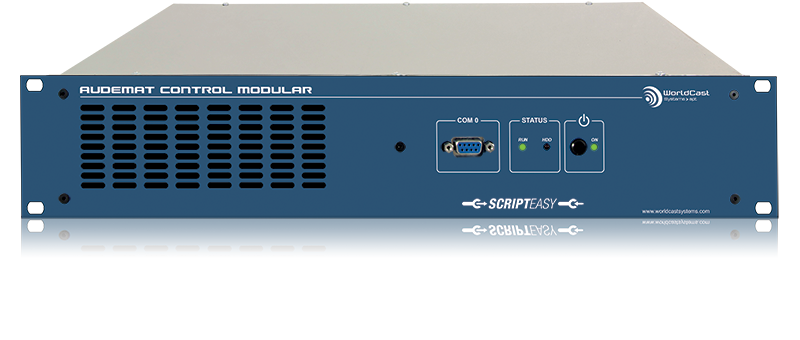

AUDEMAT CONTROL Modular – A scalable solution for all sites, from small to large configurations, this device can integrate a modular number of GPIOs to meet the exact demands of the site. More +

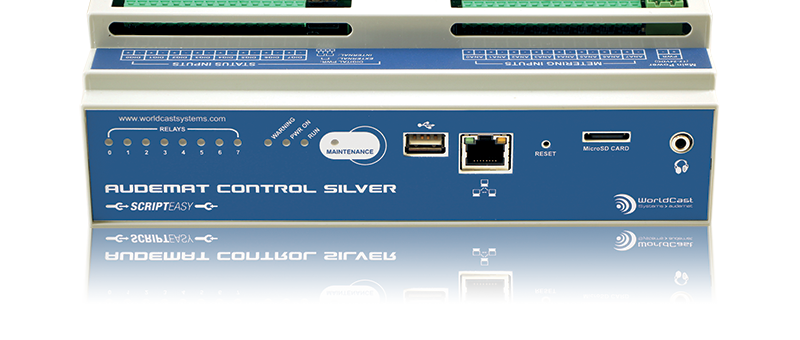

The AUDEMAT CONTROL Silver is a compact, DIN Rail mountable system for site management and monitoring. It can be configured to connect with any equipment at a site through traditional status and metering inputs and commands (relays). More +
ORDER INFORMATION
| REF | Description | ||
|---|---|---|---|
| TF01196-ASR | AUDEMAT CONTROL Including : 3 wiring panel for 24 metering (analog) inputs, 32 status (digital) inputs and 32 relays | ||
| PATCH PANELS with screw connectors | |||
| TF01199 | AUDEMAT IO PANEL – 2U panel with redundant power supply for wiring 24 metering (analog) inputs, 32 relays, 32 status (digital) inputs | ||
| TF01200 | AUDEMAT ANALOG PANEL – 1U panel for wiring 24 metering (analog) inputs | ||
| TF01201 | AUDEMAT STATUS PANEL – 1U patch panel for wiring 32 status (digital) inputs | ||
| TF01202 | AUDEMAT RELAY PANEL – 1U panel for wiring 32 relays | ||
| On Demand | |||
| SNMP concentrator licenses | |||
